Concealed Linear Slot Diffuser with Fixed Y-Type Blade
Concealed linear slot diffuser with fixed Y-type blades and a front-removable core. Frame thickness is 4 mm, blade thickness is 5 mm, and slot width is 12 mm.
Product Overview

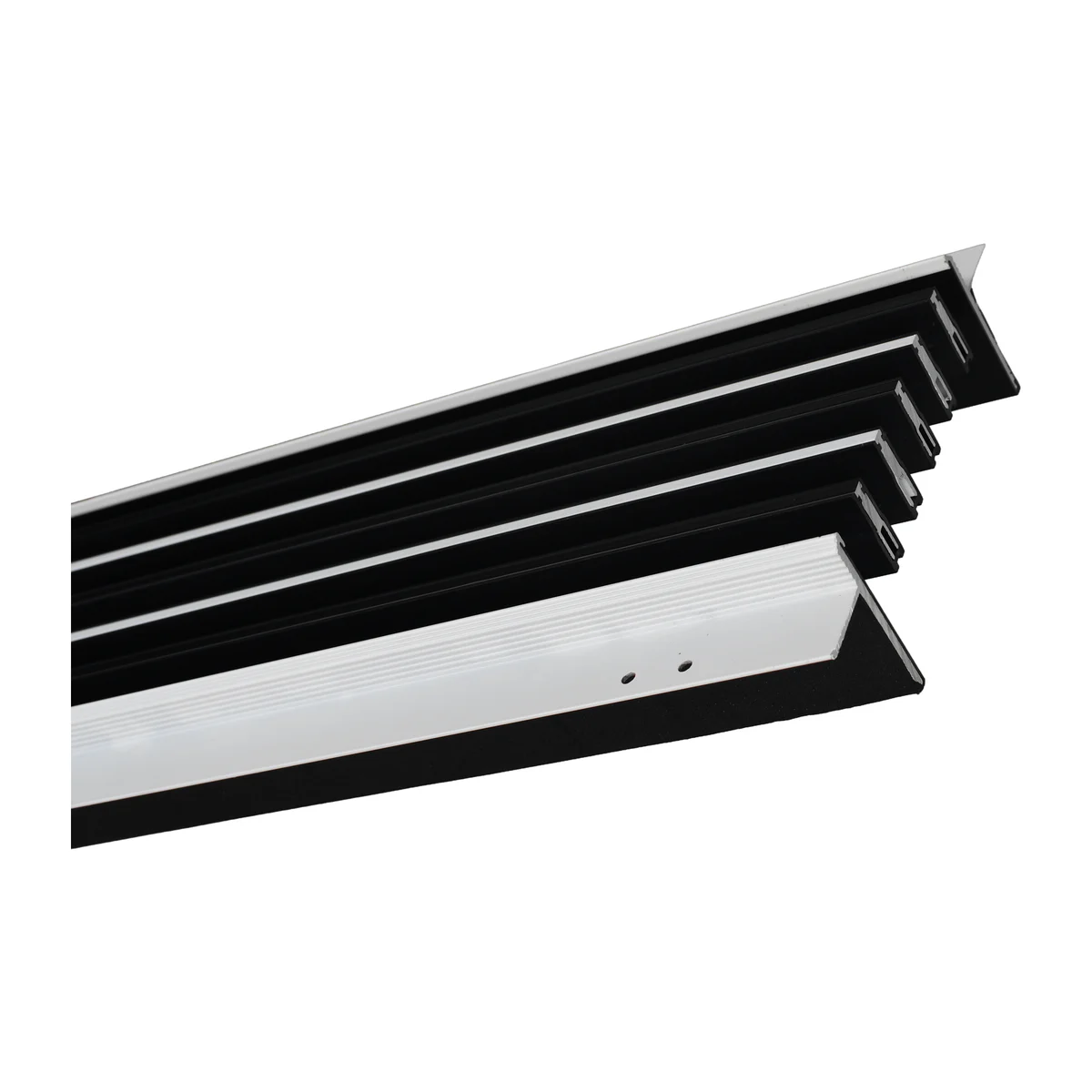

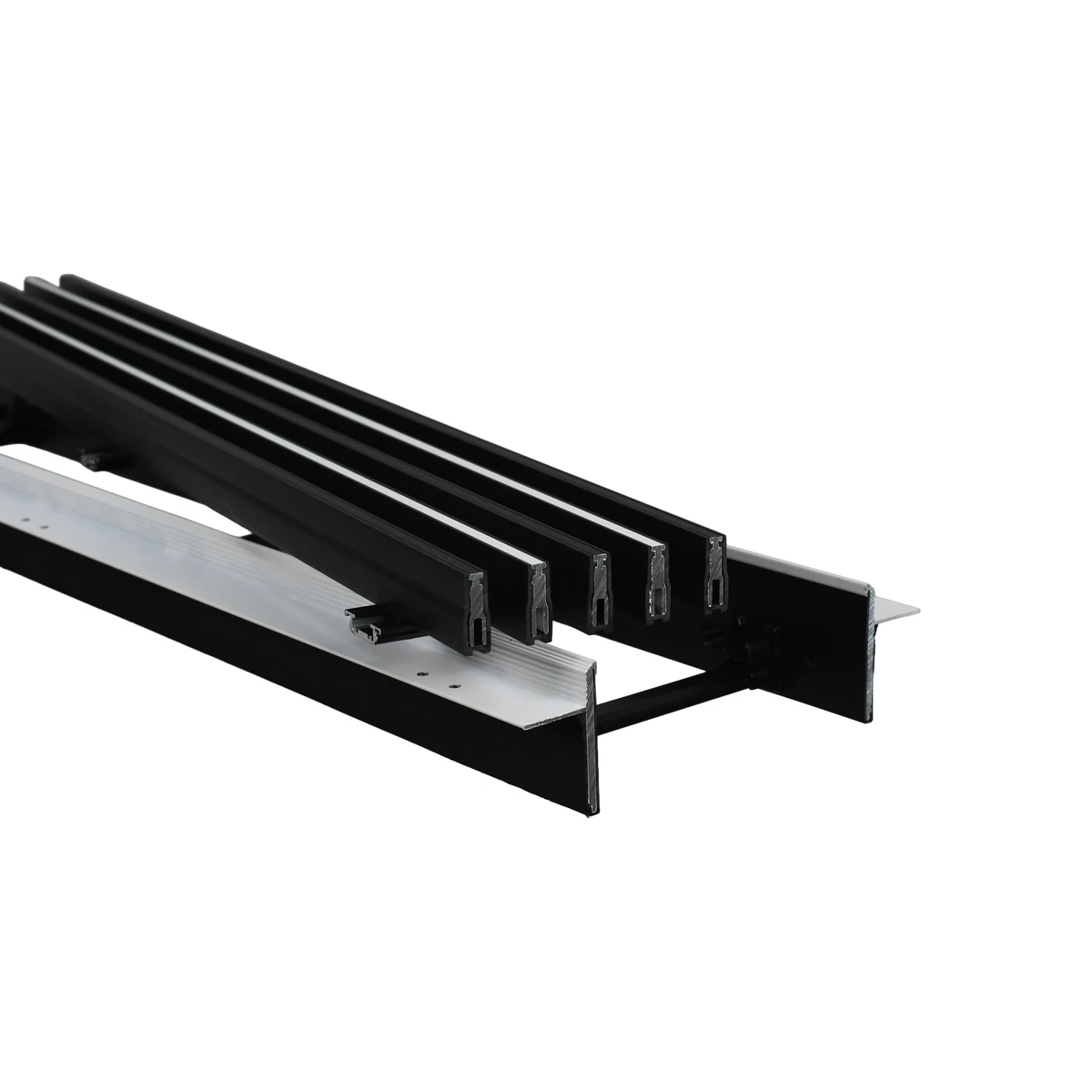

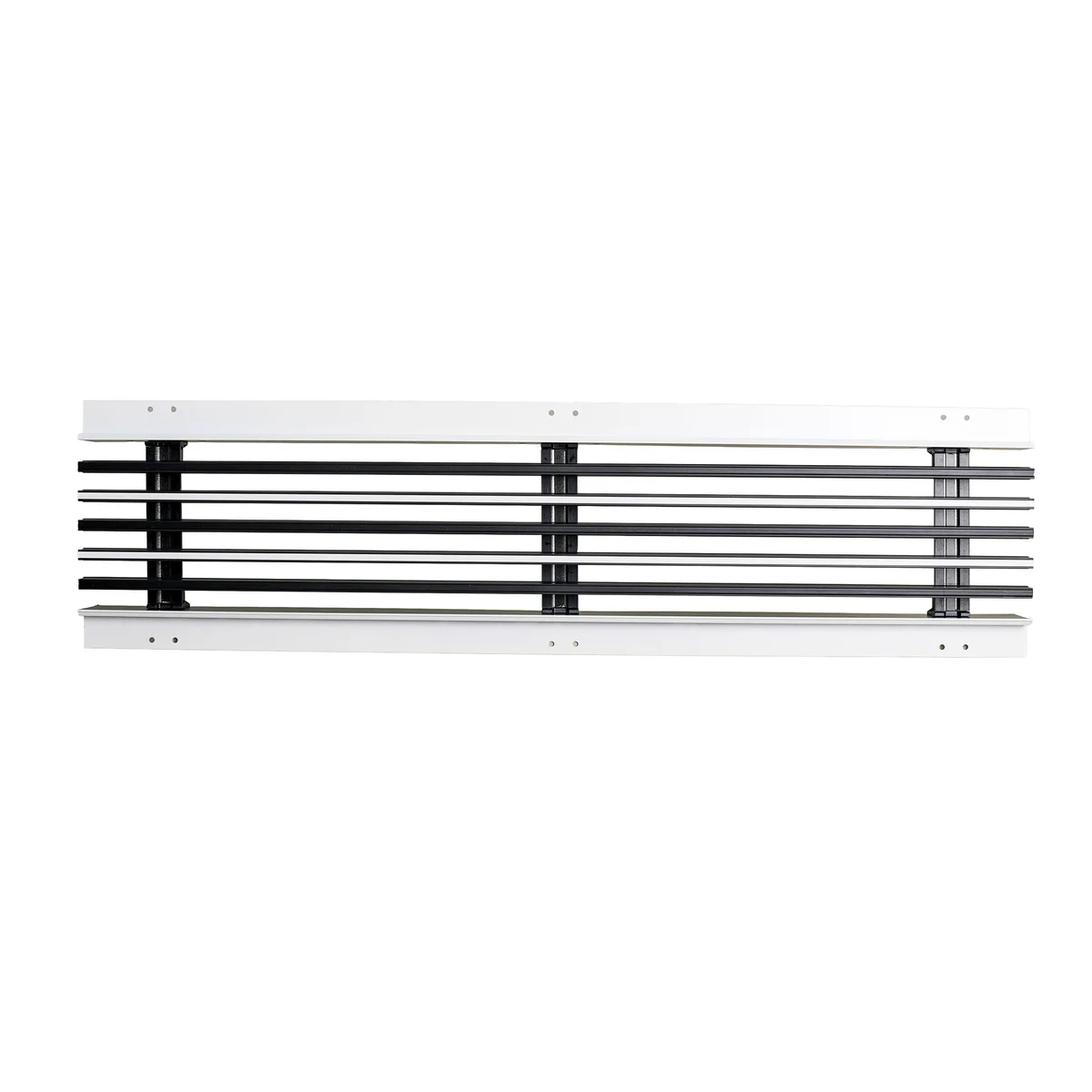

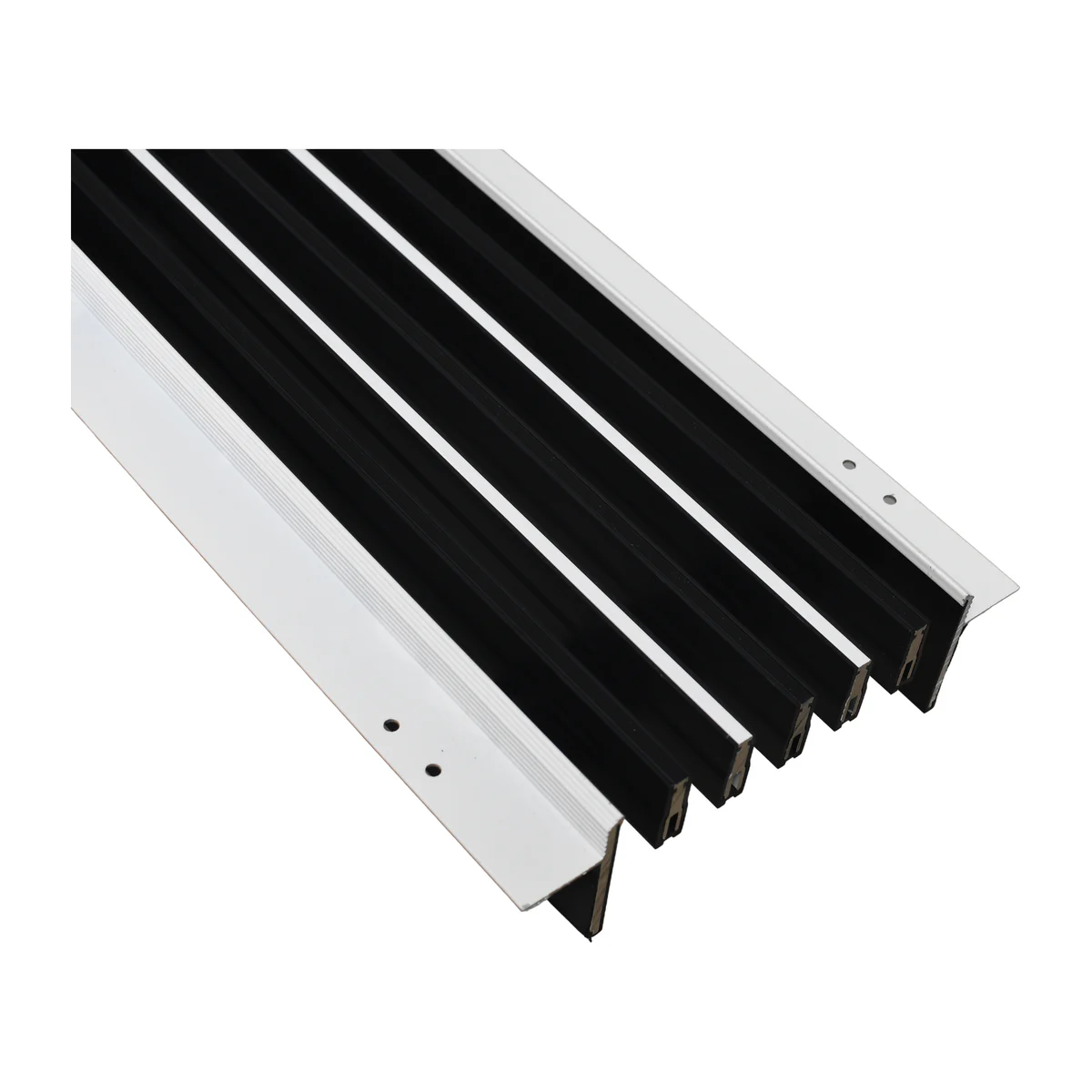

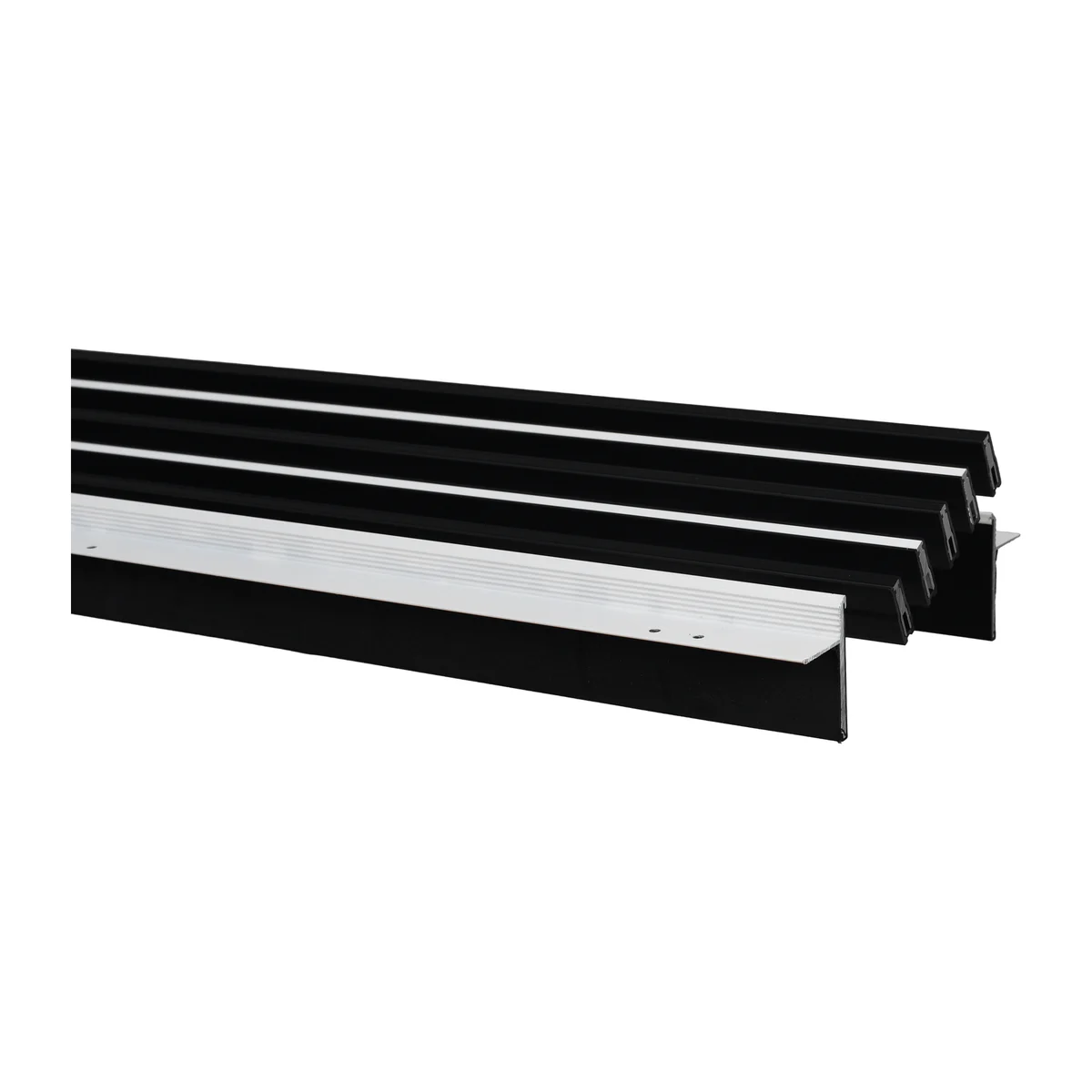

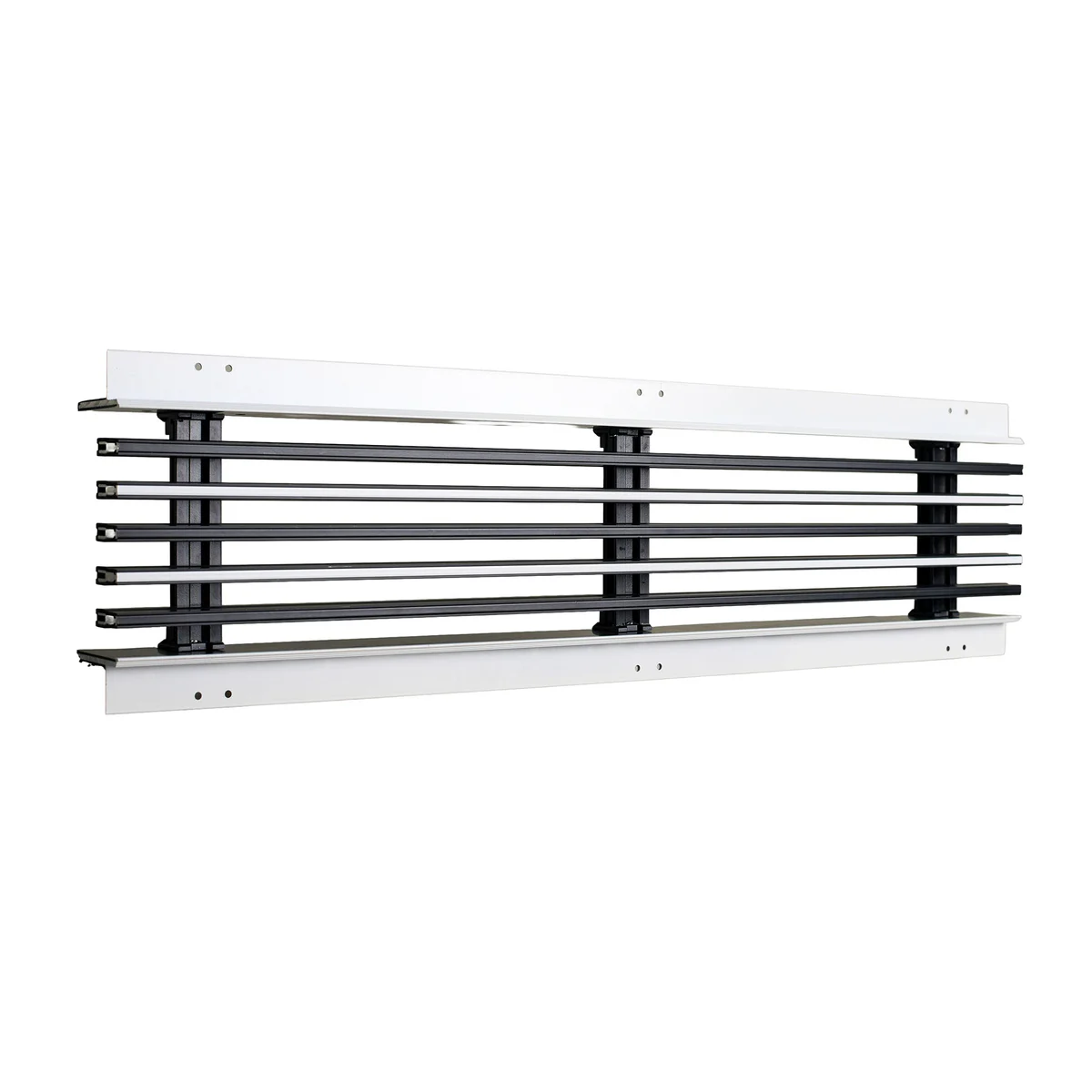

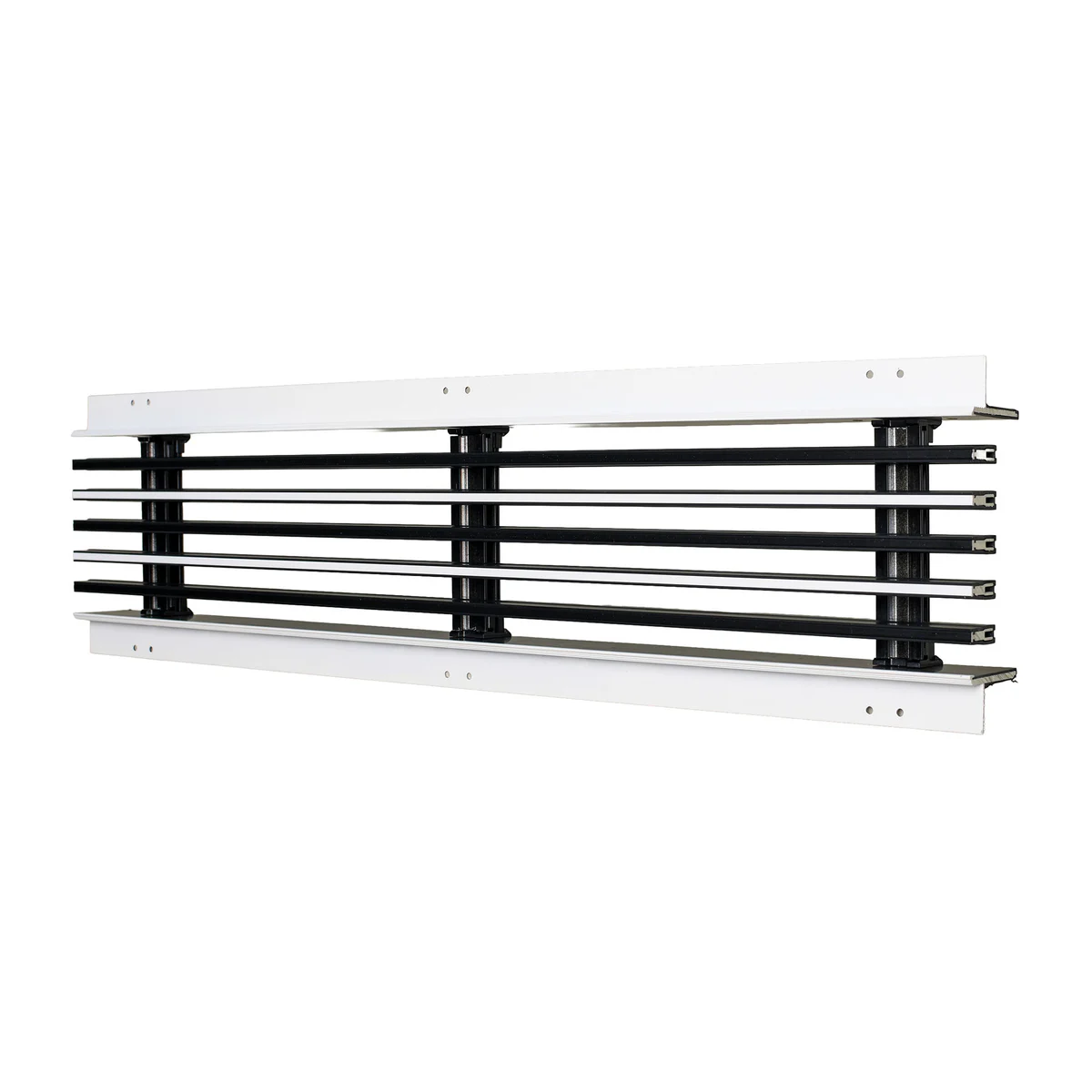

The Concealed Linear Slot Diffuser with Fixed Y-Type Blade has a concealed-frame structure and a front-removable core. Its frame and fixed Y-type blades are made of plastic-clad aluminum; frame thickness is 4 mm, blade thickness is 5 mm, and slot width is 12 mm. The core can be removed from the front without tools for separate cleaning. Available options include 1, 2, 3, 4 or custom slots; black, white or two-color blade combinations; and RAL 9003 or RAL 9010 frame finishes. Length is customized to project requirements.
Key Features
Product Gallery
Configuration Options
Technical Specifications
- Slot Width
- 12 mm
- Blade Type
- Fixed Y-Type Blade
- Blade Adjustment
- Fixed / Non-adjustable
- Slot Count
- 1 / 2 / 3 / 4 / Custom
- Length
- Customized to project requirements
- OEM / ODM
- Available
- Production Location
- Foshan, China
Materials & Finish
- Frame Material
- Plastic-Clad Aluminum
- Frame Thickness
- 4 mm
- Blade Material
- Plastic-Clad Aluminum
- Blade Thickness
- 5 mm
- Blade Color
- Black / White / Two-color combination
- Frame Finish
- RAL 9003 / RAL 9010
Dimensions & Project Confirmation
Length is customized to project requirements. Install the frame first, then fit the removable core.
Overall width, project opening, clearances and tolerances are confirmed for each project.
Inquiry Requirements
For a quotation, please provide:
- Slot Count
- Required Length
- Overall Width / Project Opening
- Blade Color and Frame Finish
- Quantity
- Project Country
- Project Drawing, if available
