Linear Slot Diffuser
The Removable Core Linear Slot Diffuser uses a 10 mm slot width, adjustable airflow and a front-removable central core for project-specific configurations.

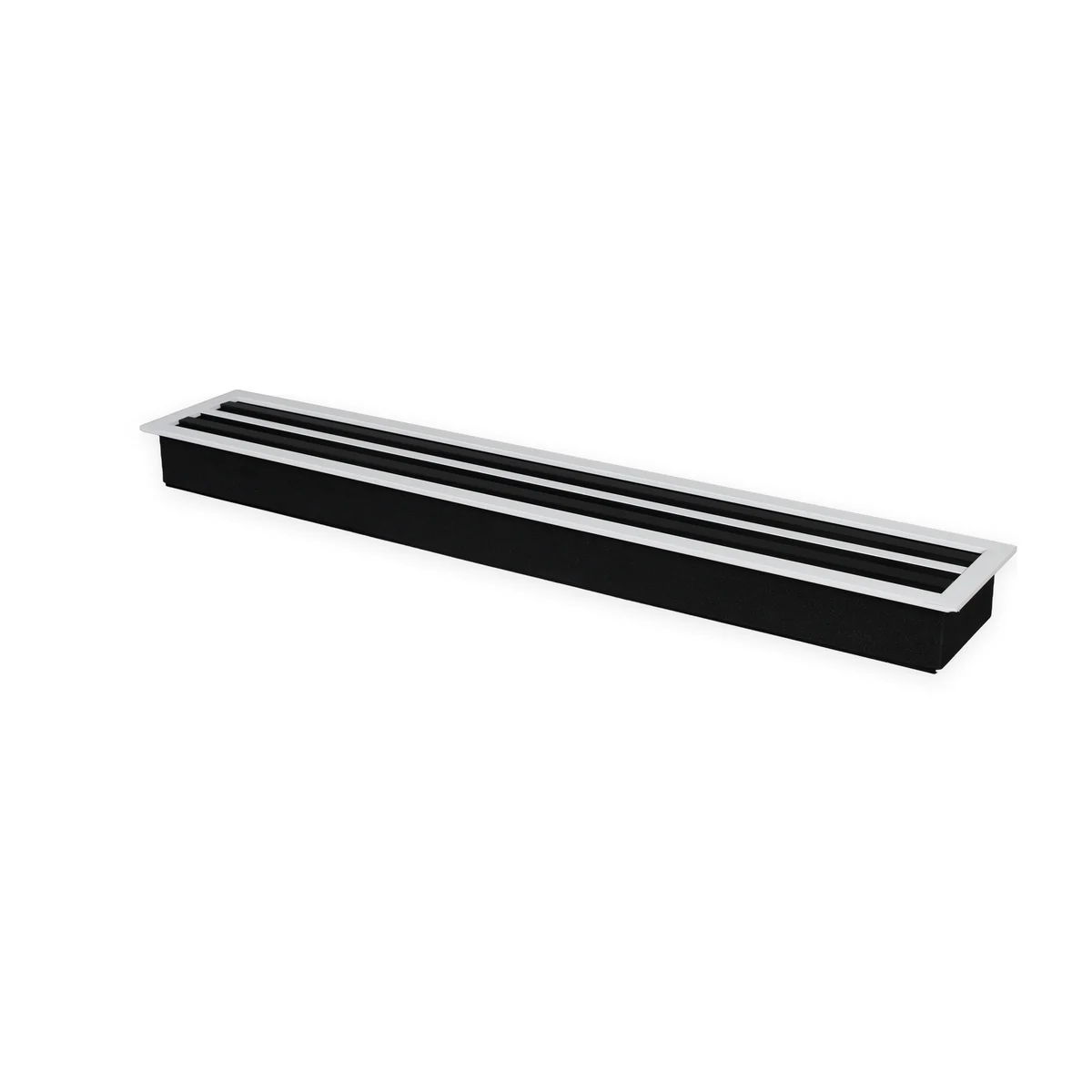

Removable Core Linear Slot Diffuser
Removable Core Linear Slot Diffuser with a 10 mm slot width, adjustable airflow and a front-removable central core designed for easier installation, maintenance and cleaning.
Product Overview
Front-Removable Core for Project Access
The Removable Core Linear Slot Diffuser uses a plastic-clad aluminum frame and removable Y-type blade assembly. The complete central core can be removed from the front without tools for separate cleaning. It supports 1, 2, 3, 4 or custom slot configurations, project-customized lengths, black or white blade combinations, and RAL 9003 or RAL 9010 frame finishes.
Product-Specific Structure
Key Features
Front-Removable Core
The complete central core can be removed from the front.
Tool-Free Access
The removable core can be accessed without tools.
Separate Cleaning
The removable core can be cleaned separately from the frame.
Frame-First Installation
Install the frame first, then place the removable core.
Authentic Product Views
Product Gallery, Details & Removal Process

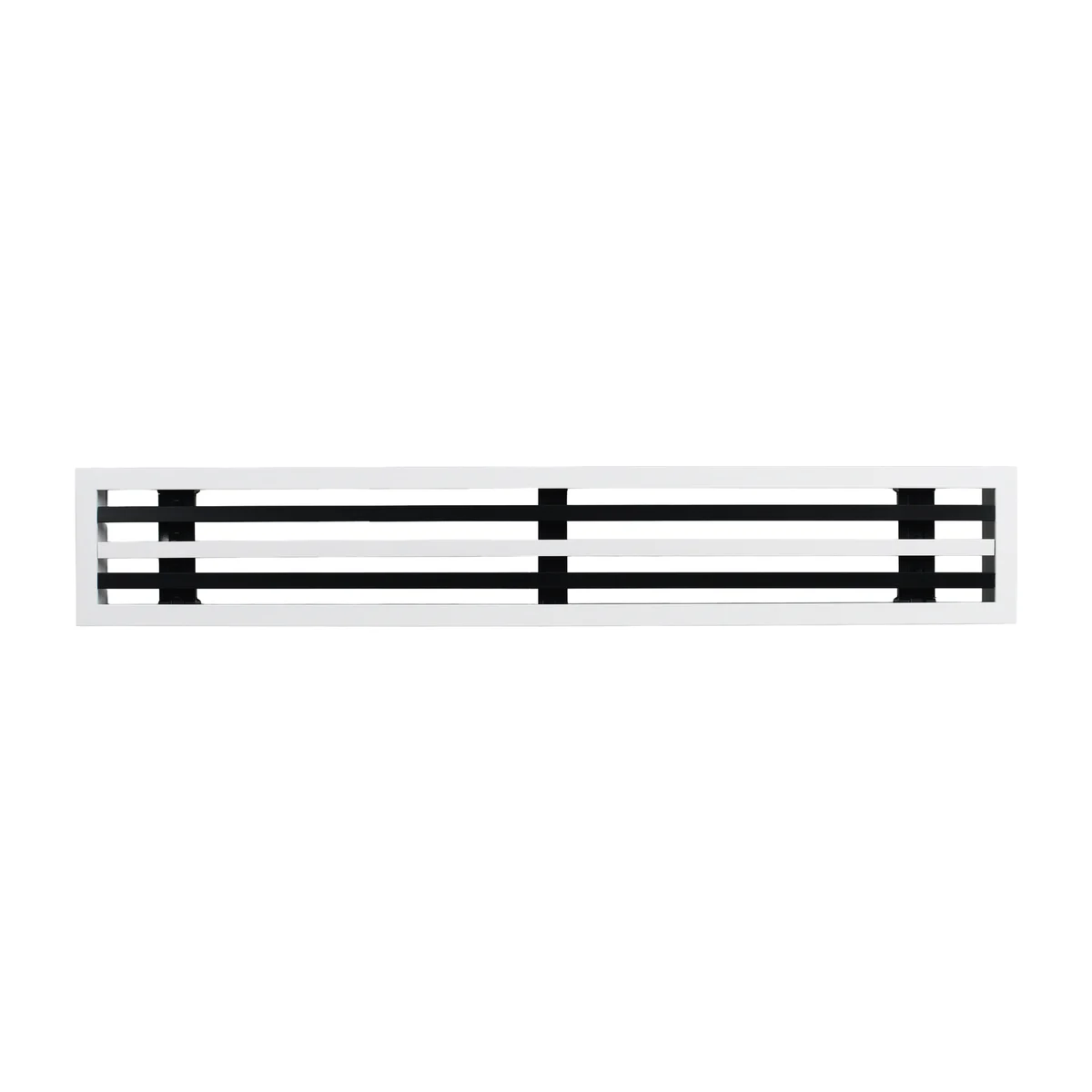

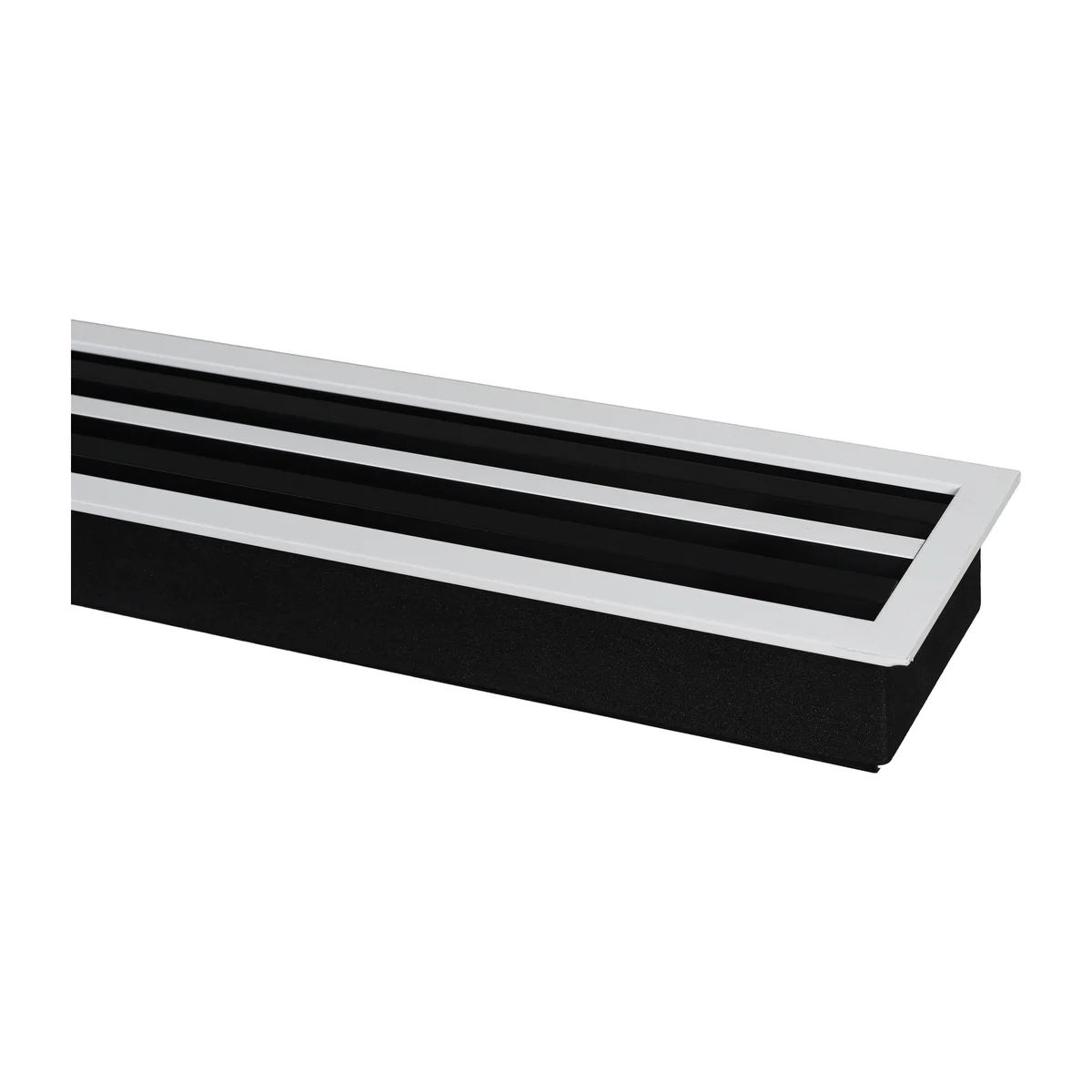

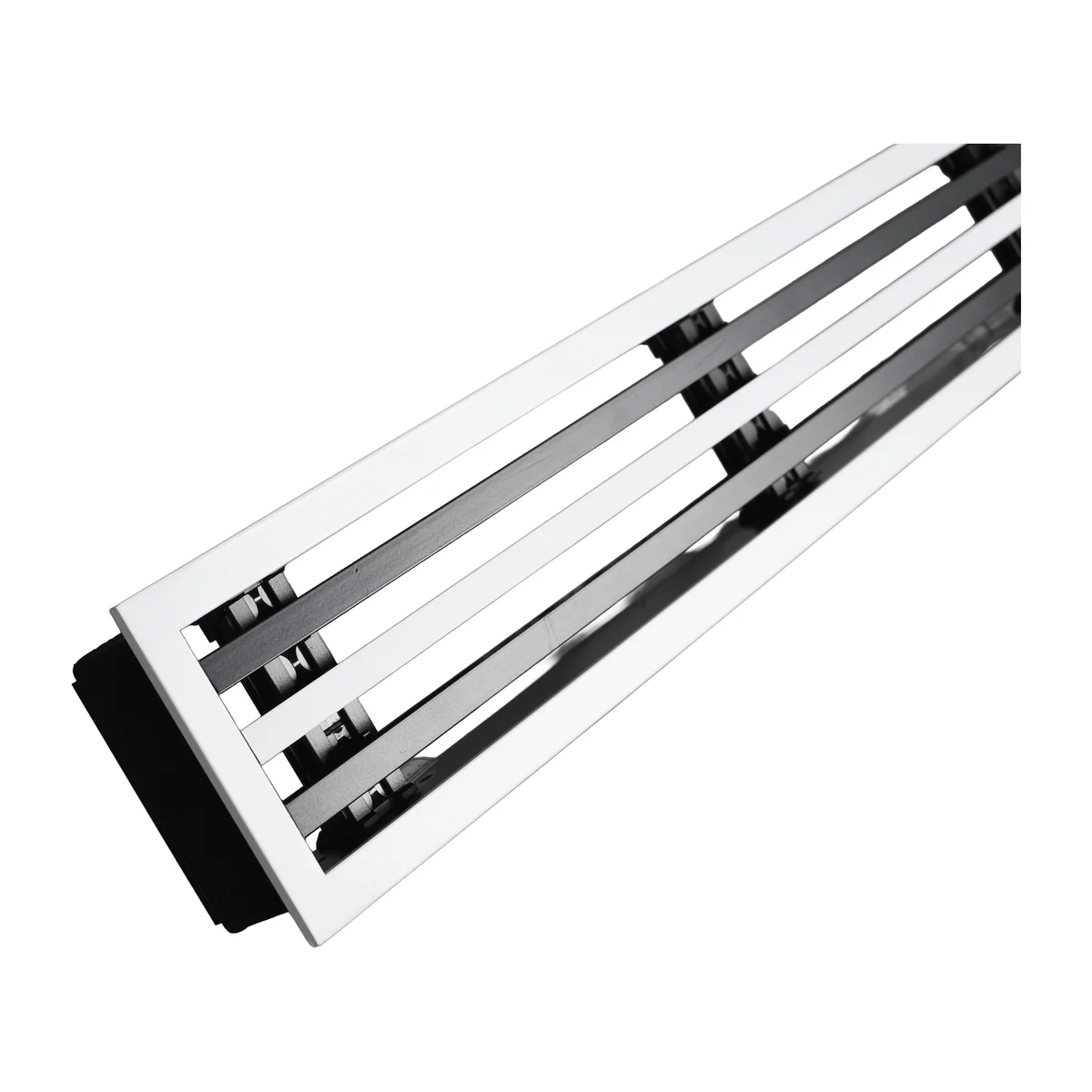

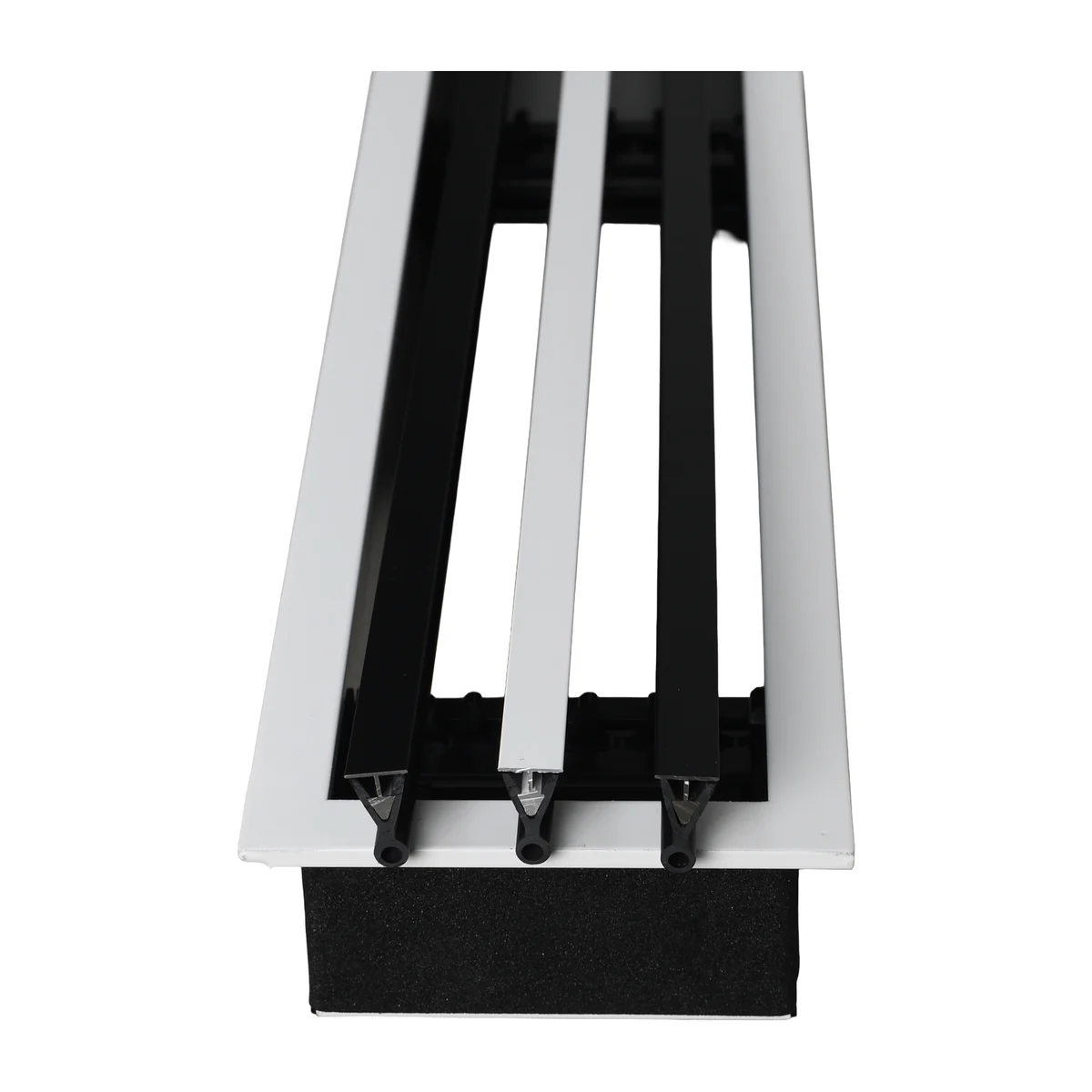

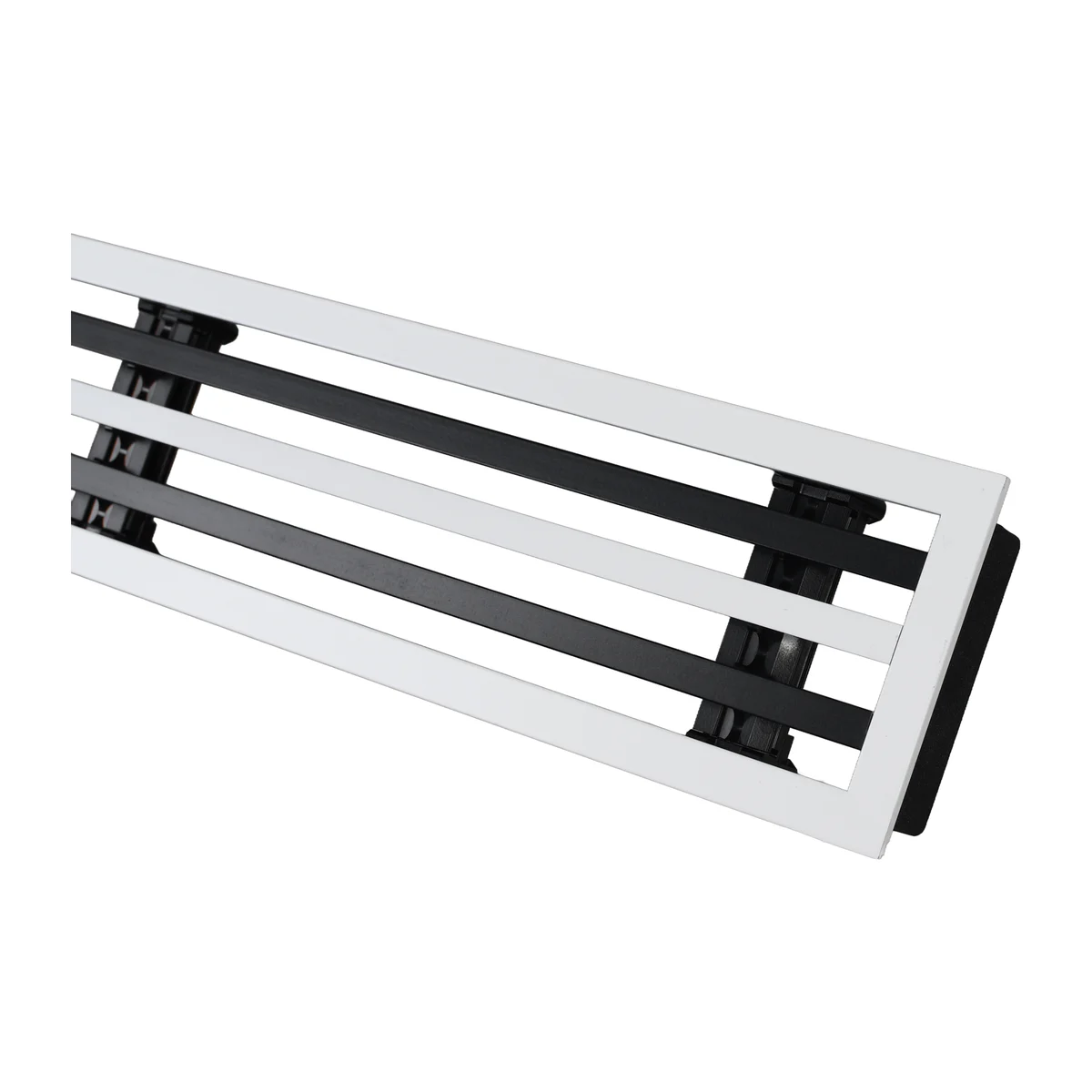

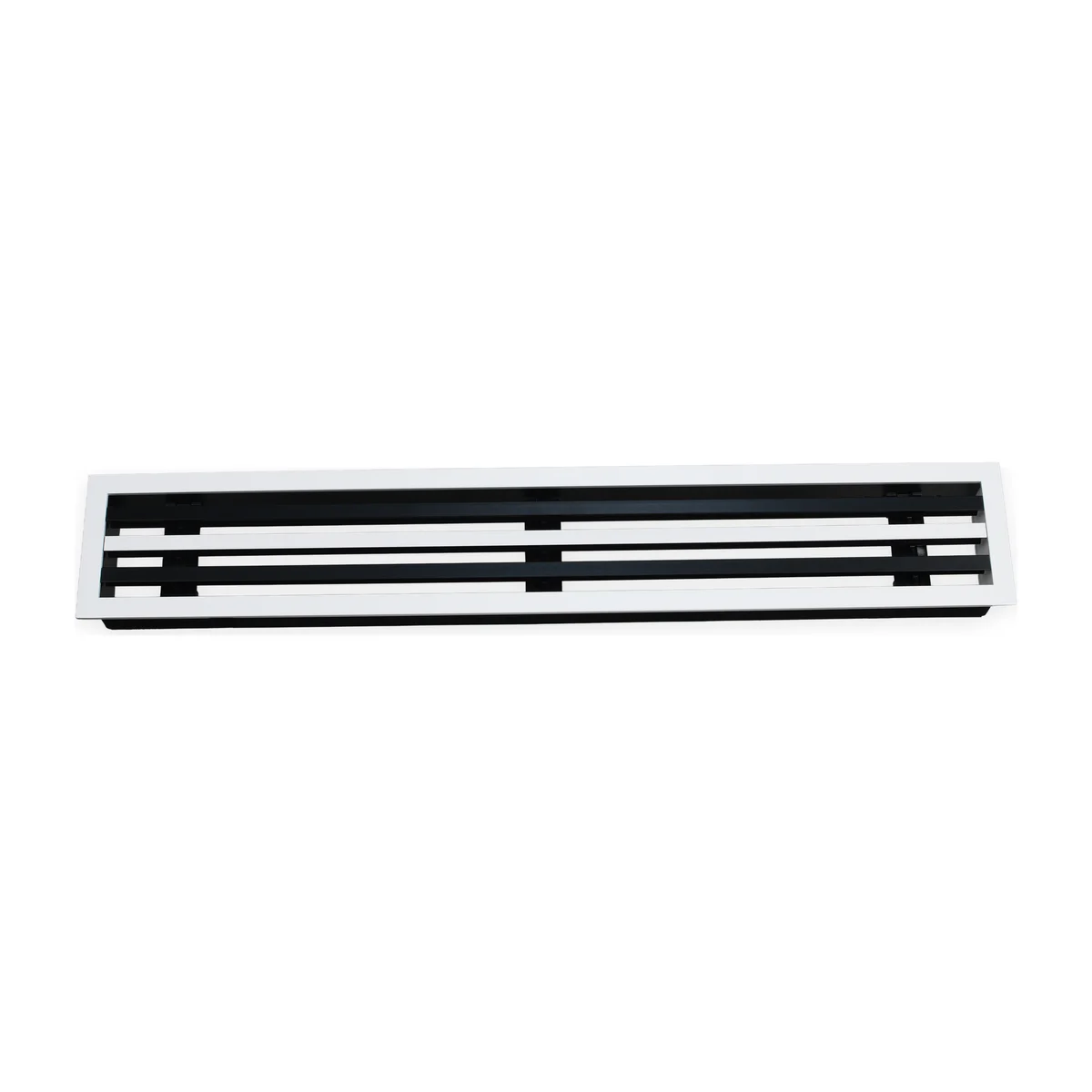

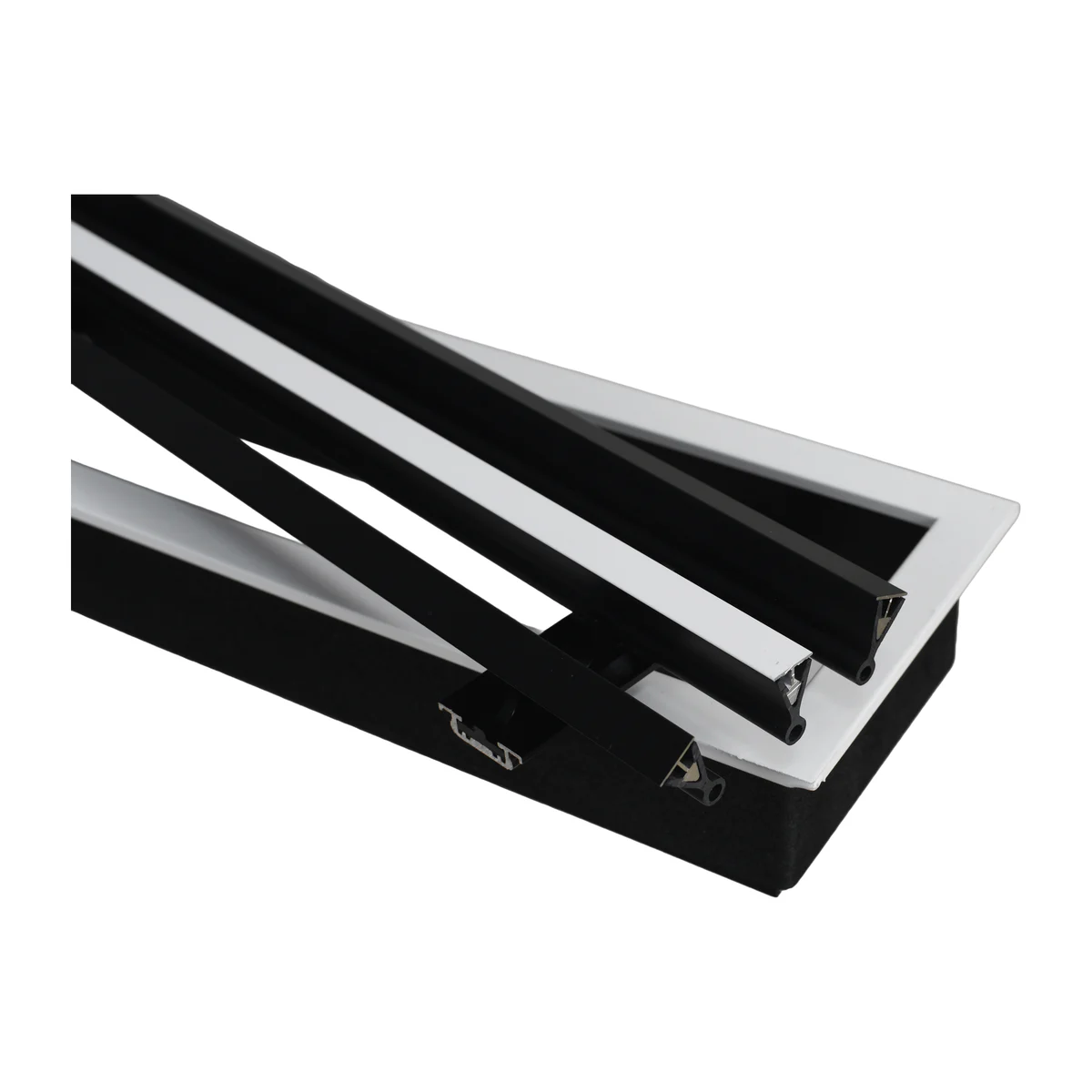

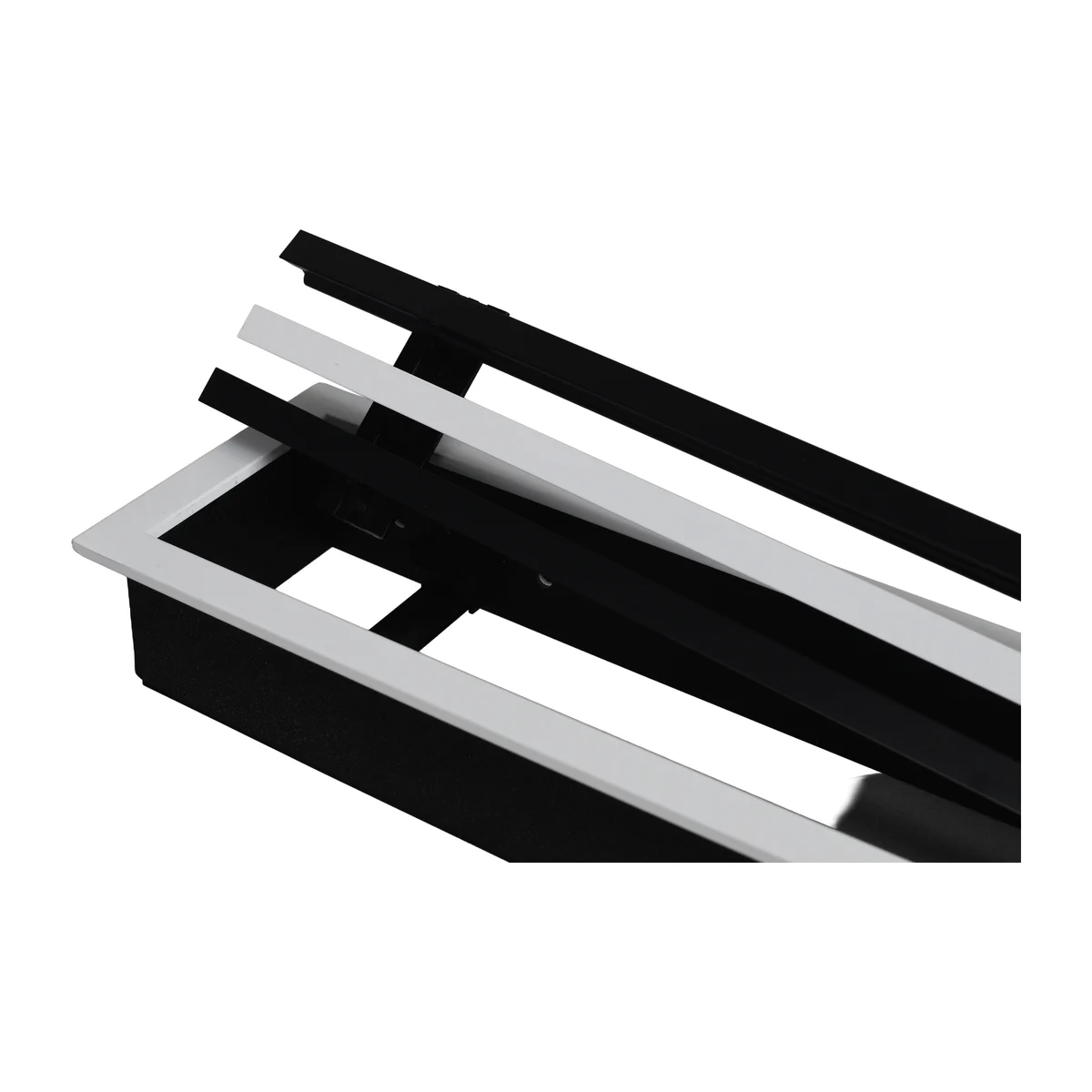

Real product photographs show the approved four-slot sample, construction details and the removable core in partially removed and separated states.
Configuration Options
Configure for Project Requirements
Slot Count
1 / 2 / 3 / 4 / Custom
Blade Colors
Black / White; single-color or two-color combinations
Frame Finish
RAL 9003 / RAL 9010
Airflow Direction
Adjustable
Length
Customized to project requirements
Product Specifications
Technical Specifications
- Slot Width
- 10 mm
- Airflow Direction
- Adjustable
- Slot Count
- 1 / 2 / 3 / 4 / Custom
- Length
- Customized to project requirements
- OEM / ODM
- Available
- Production Location
- Foshan, China
Construction
Materials & Finish
Frame Material
Plastic-Clad Aluminum
Frame Thickness
1.2 mm
Blade / Removable Core Material
Plastic-Clad Aluminum
Blade Type
Y-Type Blade
Blade Color
Black / White; single-color or two-color combinations
Frame Finish
RAL 9003 / RAL 9010
Project Confirmation
Dimensions
Length
Customized to project requirements.
Final Project Details
Overall width and project opening should be provided for inquiry and confirmation.
Request a Quote
Information to Prepare
Share these project details so the inquiry can be reviewed clearly. You can start with the information you have. If available, please provide project drawings or technical documents to support quotation accuracy.
- Slot Count: 1 / 2 / 3 / 4 / Custom
- Required Length
- Overall Width / Project Opening
- Blade Color Combination and Frame Finish
- Quantity
- Project Country
- Project Drawing, if available
